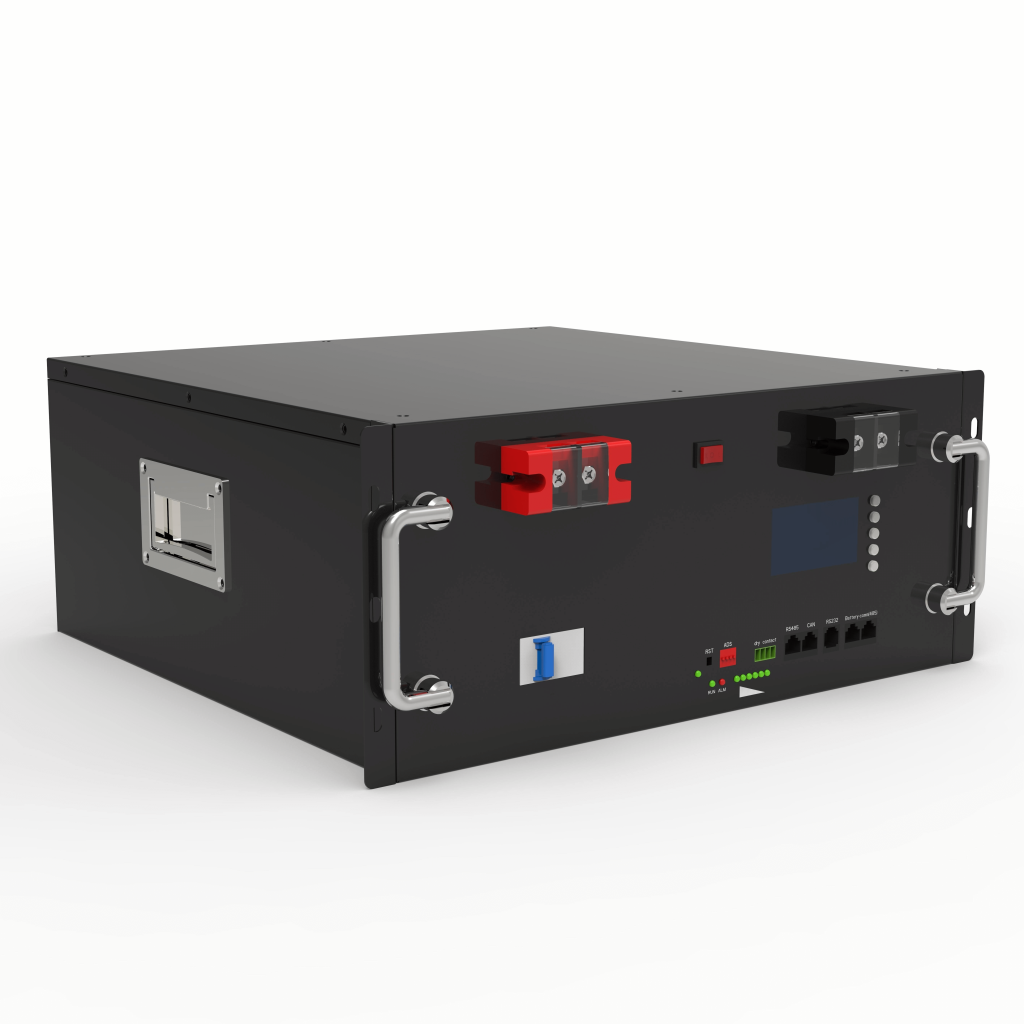

LiFePO4 Battery 48V 150AH 7.7KWH Home Battery For Solar Energy System

2024-08-14 08:21

ข้อมูลจำเพาะ

LiFePO4 Battery Pack 51.2V 150Ah-Rack
หมายเลขรุ่น	AIN48150
ประเภทเซลล์	LiFePO4, Prismatic 150AH, 16S1P
พลังงาน	7.68KWH
ความจุที่กำหนด	150 อา
แรงดันไฟฟ้าที่กำหนด	51.2V
ปล่อยอย่างต่อเนื่องในปัจจุบัน	100A
SOC	YES，LCD Voltage Display
พอร์ตการสื่อสาร	RS485/RS232/CAN
กรณีแบตเตอรี่	SPCC/Metal material

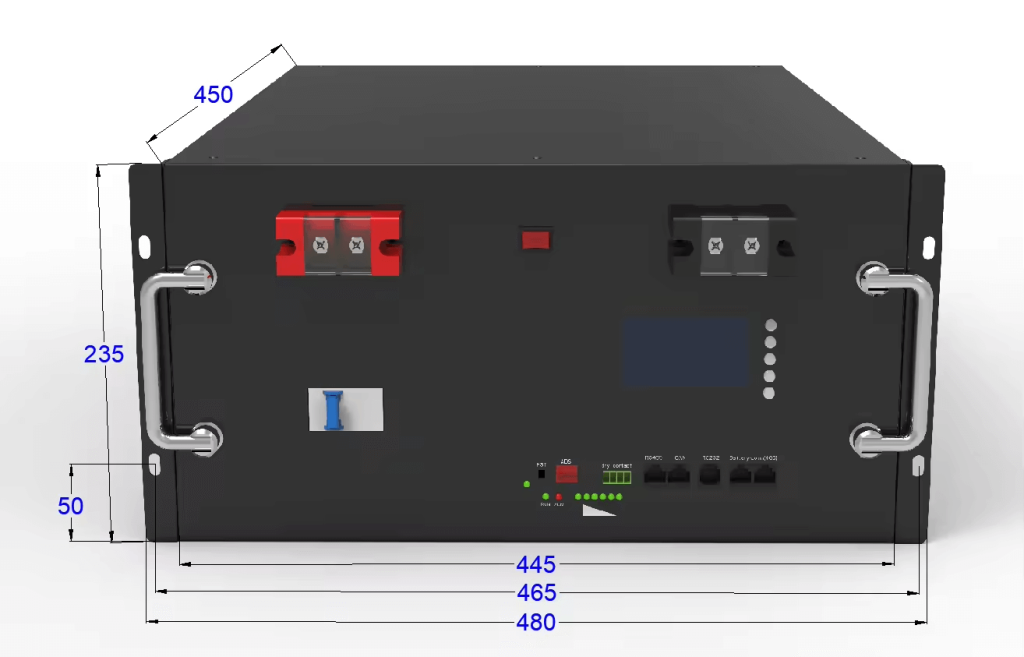

มิติ	L480W450H235mm
น้ำหนักสุทธิ	Approx. 68kg
Output Power (W)	5000W
Applications/Used at	Residential/Commercial solar power system

Features & Advantages

1.The use of high-rate lithium iron phosphate batteries, discharge current instantaneously, fast charging and other superior performance, no self-discharge, long-term idle products without loss of power, performance does not decay.

2.Product is safe, punctured in any case, collision, the battery will not burn and explode.
3.Configure emergency start function, do not need to recharge without power and other rescue, open the emergency switch to start the car.

4.configuration of high-power protection board, with short circuit, overcharge, over discharge protection to ensure that

the product durability.

5. Configure the voltage display function, can detect the battery voltage, instant start voltage, charging system charging status.

6.Motor terminals to take the copper material, conductive properties, lower resistance, better starting performance.

7. The product uses high-rate lithium iron phosphate batteries, the current output strength of more than twice the traditional battery, start-up performance is excellent, can improve the arctic start-up effect, can improve the efficiency of gasoline pumps and spark plugs and other power equipment, gasoline Burning more fully and effectively reduce fuel consumption.
8.The charging efficiency is more than 3 times higher than that of the traditional battery,but the weight is only 1/3 of the traditional battery. the output voltage is more stable, the working intensity of the automobile motor is effectively reduced, the fuel consumption of the automobile is reduced, the brightness of the automobile lamp is enhanced, and the sound quality is improved.

ใบสมัคร

โรงงานของเรา

Lithium battery manufacturer

► Our management and technical teams are from top domestic enterprises, with over 14 years of research and development, manufacturing experience on Lithium batteries as well as BMS board, circuit design, and etc.
► Over 14 years of OEM and ODM service experience on lithium batteries.
► Our service philosophy is to provide timely and professional replying to assist our esteemed customers to understand technical details properly and place orders without worries.
► Professional packing of products and assistance on different kinds of shipments to help customers proceed smoothly on Dangerous Goods delivery from China to destination.
► Strict test and inspection would be executed before shipping, at least 3-year warranty provided. Strong after-sales engineer team to assist the batteries repairing.

การบรรจุและการจัดส่ง
