รายละเอียด:
Technical Parameters | ||||
ไม่ | สิ่งของ | Parameters | ||
1.Performance | ประเภท | LiFePO4 Battery (Cell 3.2V 100Ah | ||
แรงดันไฟฟ้าที่กำหนด | 51.2V | |||
ความจุสูงสุด | 100Ah(0.2C/25°C) | |||
Operating Voltage Range | 42V~57V (Typical: 51.2V) | |||
แรงดันไฟฟ้าในการชาร์จ | 57V | |||
ปล่อยแรงดันไฟฟ้าตัด | 42V | |||
Charging Current (Max) | 60A | |||
Discharging Current (Max) | 100A | |||
ขนาด | ความยาว | 520mm | ||
ความกว้าง | 460mm | |||
ความสูง | 200mm | |||
น้ำหนัก | About 52.5KG | |||
2.Function | Installation Method | Wall-mounted | ||
การสื่อสาร | RS485 | |||
Terminal Stud | M8 Bolt | |||
Alarm&Protection | Over Voltage, Under Voltage, Short Circuit, Over Current, Over Temperature, Low Temperature Protection, etc. | |||
3.Working Condition | Cooling Mode | Automatic Cold And Hot | ||
Altitude | ≤4000m | |||
ความชื้น | 15%~85% | |||
อุณหภูมิในการทำงาน | ชาร์จ | 0°C~50°C | ||
ปล่อย | -10 ° C ~ 60 ° C | |||
Recommended Operating Temperature | ชาร์จ | 15°C~40°C | ||
ปล่อย | 15°C~40°C | |||
การเก็บรักษา | 0 ° C ~ 35 ° C | |||

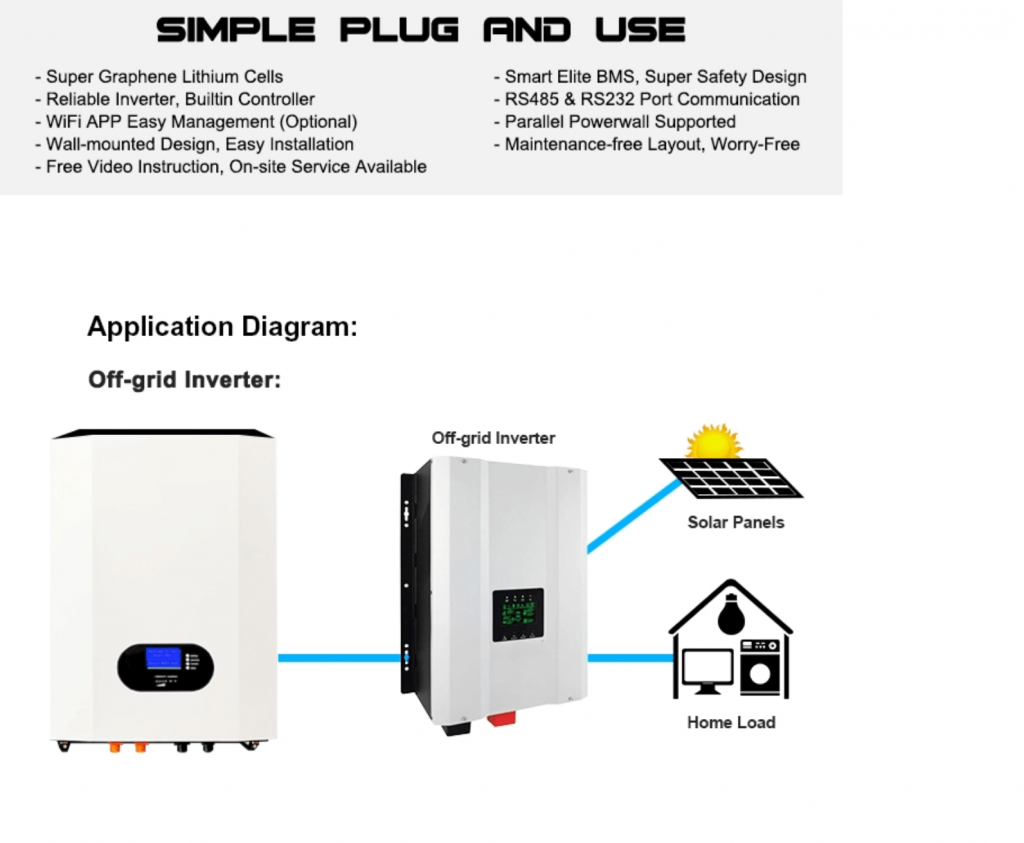

Application Field: Telecommunication, PV Energy Storage, Household Energy Storage etc. |
Production Describation
1. 51.2V 100Ah LFP100Ah-16S1P LiFePO4 Battery Packs
2. Real Capacity: 100Ah
3. โรงงานมืออาชีพ: OEM / ODM ยินดีต้อนรับอย่างอบอุ่น
4. UL / CE / ROSH / MSDS / UN38.3 ได้รับการอนุมัติ
5. ความหนาแน่นของพลังงานสูงวงจรชีวิตที่ยาวนาน
NO | Iterm | ข้อมูลจำเพาะ |
1 | ความจุ | 100 อา |
2 | แรงดันไฟฟ้า | 51.2V |
3 | แม็กซ์ แรงดันไฟฟ้า | 57.0V |
4 | ปล่อยแรงดันไฟฟ้าตัด | 42V |
5 | ค่ามาตรฐานปัจจุบัน | 60A |
6 | แม็กซ์ ค่าใช้จ่ายปัจจุบัน | 100A |
7 | กระแสไฟมาตรฐาน | 60A |
8 | สูงสุด ปล่อยอย่างต่อเนื่องในปัจจุบัน | 100A |
9 | Pulse Discharge Discharge ที่ 10 | 200A 1s |
10 | ความต้านทานภายใน | |
11 | วงจรชีวิต | 6000 Times |
12 | มิติ | 435*875*190mm |
13 | น้ำหนัก | 102 KGs |
14 | อุณหภูมิในการทำงาน | -20 ° C-60 ° C |
1. ผู้จัดจำหน่ายแบตเตอรี่และแพ็ค LiFePO4 / ลิเธียมไอออนที่มีประสบการณ์
2. ทีมงานด้านเทคนิคการผลิตและบริการระดับมืออาชีพสำหรับบริการของคุณ
3. Alibaba golden supplier, factory recognized by ISO.
4. 7 days / 24 hours service for you, all questions will be dealed within 24hours.
5. Satable Quality--Come from superior material supplier & perfect quality control system.
6.Lower Cost--Not the cheapest but the lowest at the same quality.
7.Good Service--Satified service before and after sale.
8. Delivery Time-- 5-10 Days.
9. Warranty Period--2 Years.
โรงงานของเรา
การบรรจุและการจัดส่ง
1. UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantitie
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
(1). How do we place an order?
Please kindly send us an email specifying the item, quantity, payment or other specification to place an order.
(2). Your battery can meet CE RoHS requirements?
Our battery are with the certificate of CE/RoHS.
(3). How would the goods be shipped?
We ship via UPS,DHL ,FEDEX and sea transportation normally.
(4). Can you print my picture or logo on the battery cover?
Yes, OEM is available,we can print your picture or logo on the battery case, and you can offer your logo.
(5). What kind of guarantee you give?
Our battery the warranty time is 2 years.
