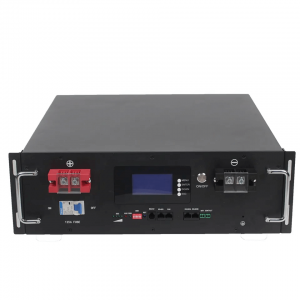

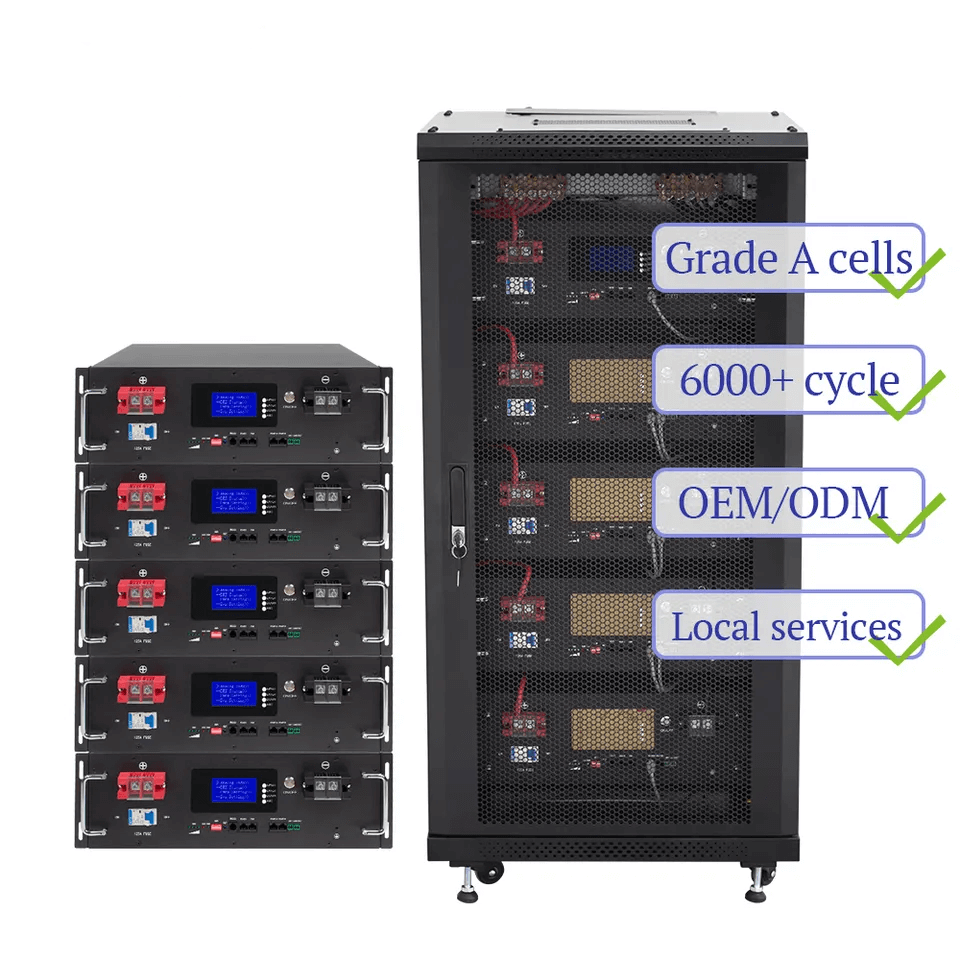

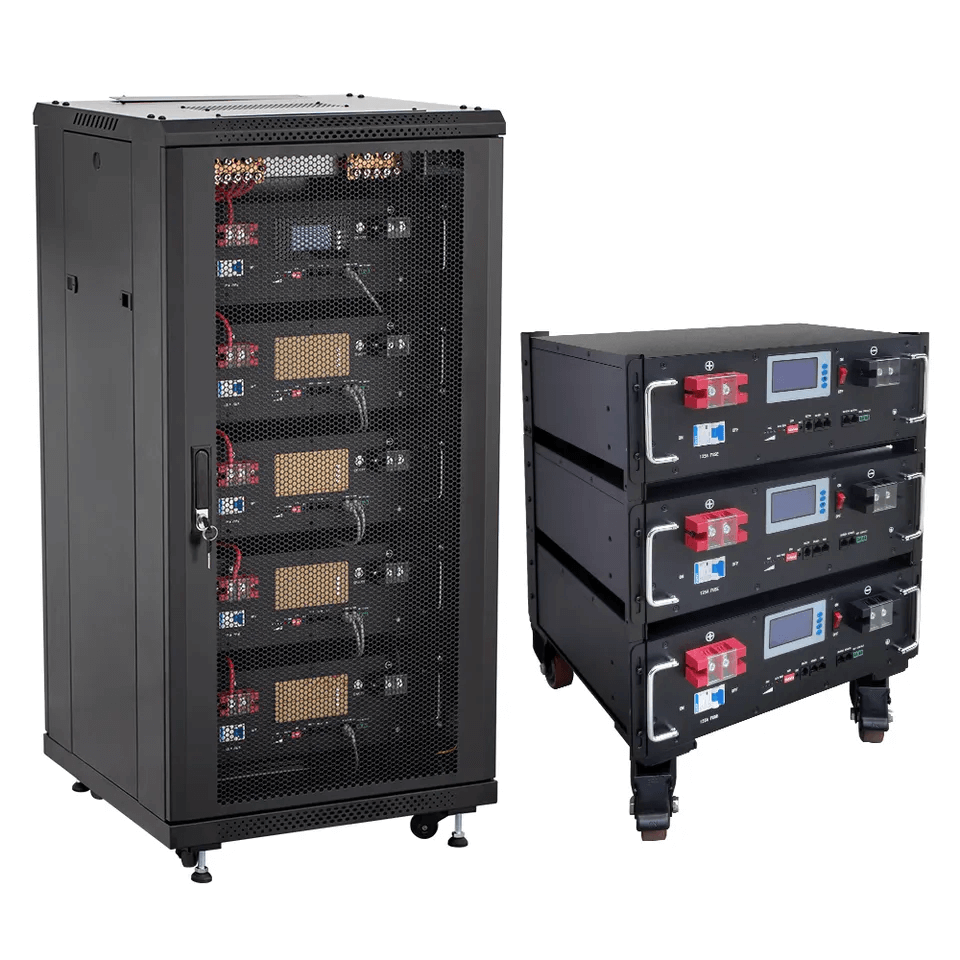

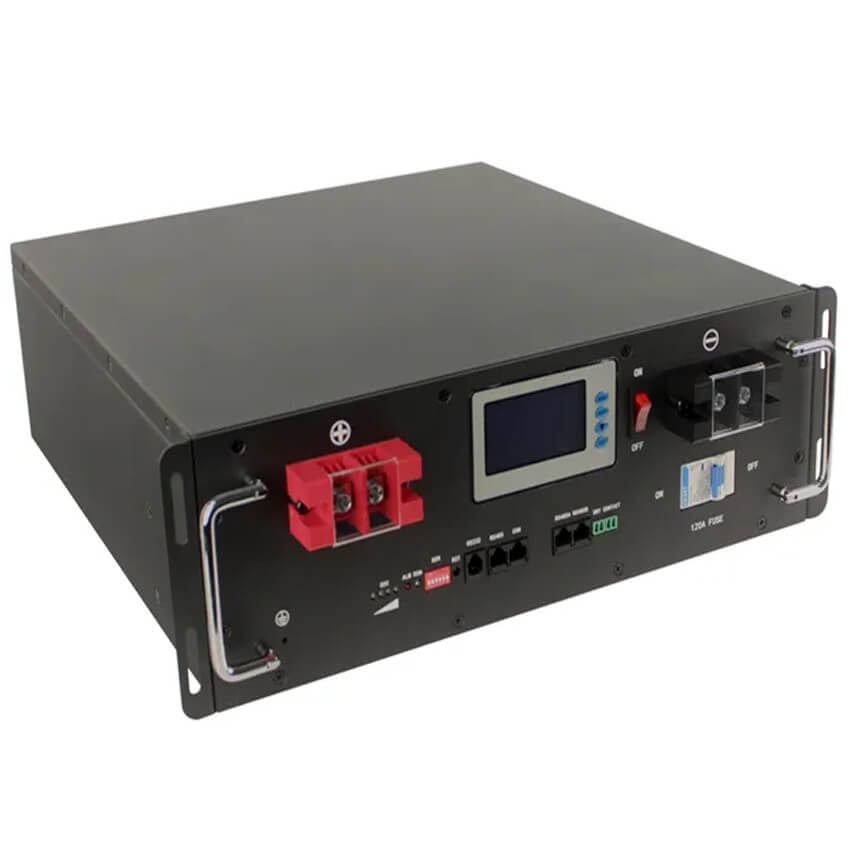

แร็คแบตเตอรี่ลิเธียมไอออนแบตเตอรี่ 48V 100Ah 200Ah 5KWH 10KWH ชุดแบตเตอรี่เก็บพลังงานแสงอาทิตย์

2023-07-27 06:25

ข้อมูลจำเพาะ

แบบ	4850	48100	48150	48200
แรงดันไฟฟ้าที่กำหนด	48V/51.2V(optional)
ความจุ	50	100	150	200
พลังงาน	2.4KWH	5KWH	7KWH	10KWH
ความต้านทานภายใน	≤60ม
วงจรชีวิต	≥5000cycles@80%DOD,25℃，0.5C ≥4000cycles@80%DOD,40℃，0.5C
ออกแบบชีวิต	≥10 years
ชาร์จแรงดันไฟฟ้าตัด	53V ±0.5V(15S);56.0V±0.5V(16S);
Max. Continuous Work Current	50A	100A	100A/150A	100A/150A/200A
ปล่อยแรงดันไฟฟ้าตัด	45V±1.0V(15S);48V±1.0V(16S);
อุณหภูมิการชาร์จ	0℃~60℃ (Under 0℃ extra heating mechanism)
ปล่อยอุณหภูมิ	-20℃~60℃ (Under 0℃work with reduced capacity)
อุณหภูมิในการจัดเก็บ	-40℃~55℃ @ 60%±25% relative humidity
น้ำหนัก	28	50	70	95
ขนาด(มม.)	520*590*180mm 520*480*220mm	520*500*270mm 520*500*310mm	520*600*270mm 520*600*310mm	520*730*270mm 520*730*310mm
Protocol (optional)	RS232-PC,RS485(B)-PC RS485(A)-Inverter,Can bus-Inverter
การรับรอง	UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

LFP battery technology without cobalt
Battery equalizers to balance voltage gaps among batteries

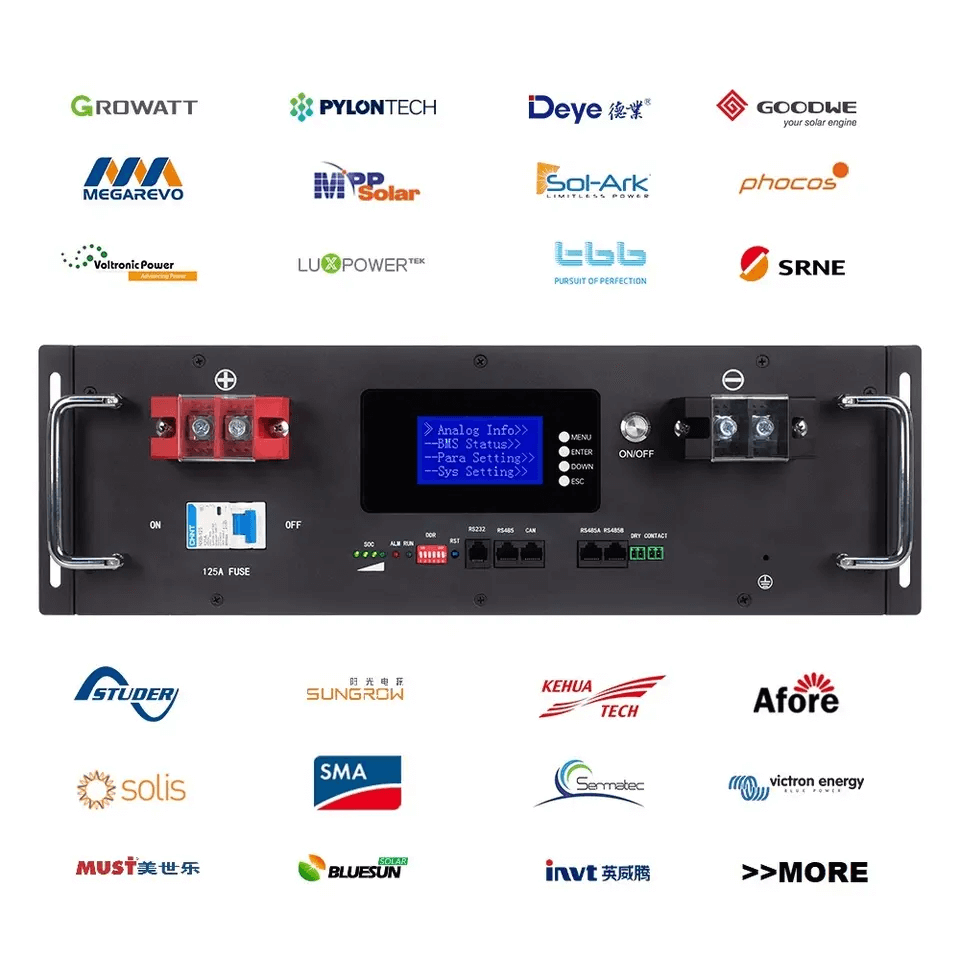

Compatible with more than 20 brands inverters
Golf cart & electric motorcycle Low speed power vehicle battery support communication, GPS tracking etc customized function

ใบสมัคร

1. การจัดเก็บพลังงาน

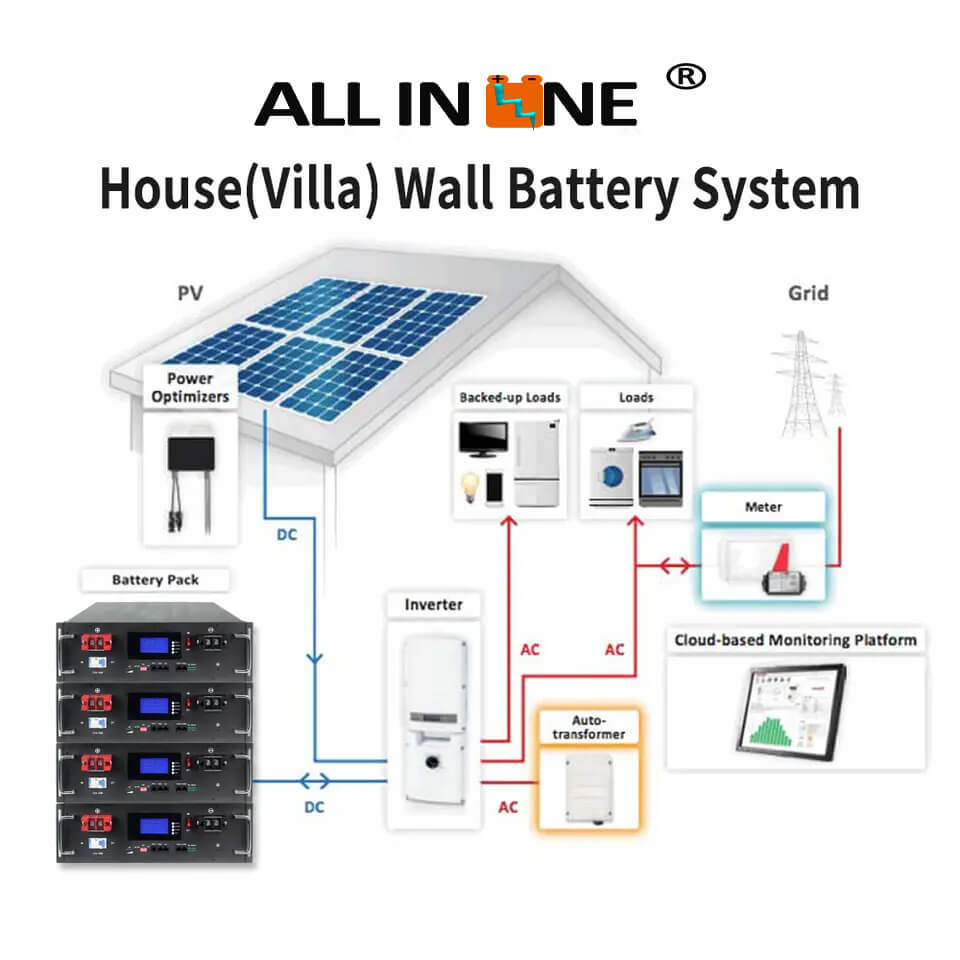

--ระบบไฟฟ้าพลังงานแสงอาทิตย์-ลม / City Grid (เปิด/ปิด) / ชุมชนและครอบครัว
2. ระบบสำรองและ UPS
--Telecommute Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment
3. การใช้งานอื่น ๆ
--Security and Electronics / Mobile POS, Mining Light / Torch / LED Light / Emergency Light
--RV Motor home /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc

โรงงานของเรา

Why choose ALL IN ONE as your supplier and partner?
* Competitive factory direct price with high quality
* Small MOQ
* Spot Supply for samples and drop shipping, bulk lead time is 15-20 working days
* DDP DDU delivery without tax and customs
* Excellent 18 hours online support from inquiry,installation,technical guide to after sales
* UN38.3, MSDS, ROHS, IEC, UL, CE, ISO9001 are certified
* Regional Customer Leads
* Professional team for OEM ODM custom service from inside to outside:
private logo, customized packaging, WIFI, Bluetooth, Communication Protocol, BMS function, high voltage or high current battery cabinet, free one stop solar energy system solution such as project design and engineer, MPPT charger, Inverter, battery racks etc.

การบรรจุและการจัดส่ง

ALL IN ONE manufactures safe , grade A brand new & high performance LFP energy storage battery including 48v liFePo4 battery ; wall mounted lifepo4 lithium batteries; Cabinet type high volt/amp lithium battery lifepo4 etc; Every cell could be tracked by QR codes and strictly tested before shipping.

คำถามที่พบบ่อย

Q1:Are you manufacturer?
A1: Yes, we are manufacturer in Anhui province.

Q2:Can you provide OEM and ODM services?
A2: Yes, we can. MOQ 100pcs for OEM and ODM to make sure your prices be more competitive in the market.

Q3:How to control the quality of your products?
A3: Our company has got the ISO9001 approval. Except the chips and packaging box outsourced,
the other parts are researched and produced by ourselves. Product Quality is fully controlled by ourselves
from beginning to end. 100% QC to make sure product in high-quality and low-defect before shipping.

Q4:What kind of certificates did the products have obtained?
A4: Most of our products certified with UL, FCC, PSE, CB, CE ,
which can cover the import requirements of most countries.

Q5: How long does the delivery takes for your products ?
A5: Stock delivery: 1-3 days; OEM/ODM lead time: 30-60 days
