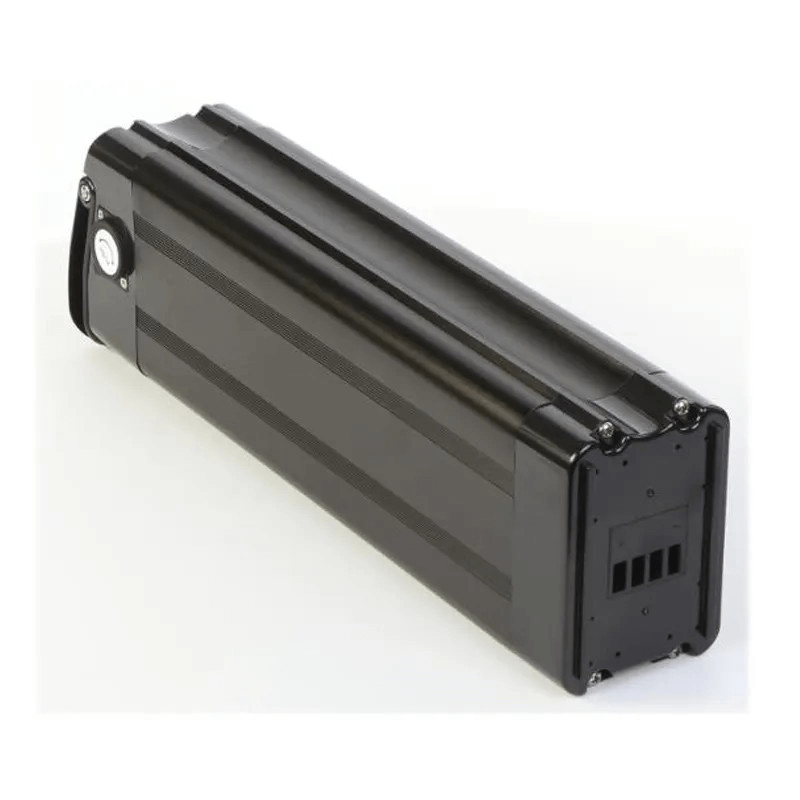

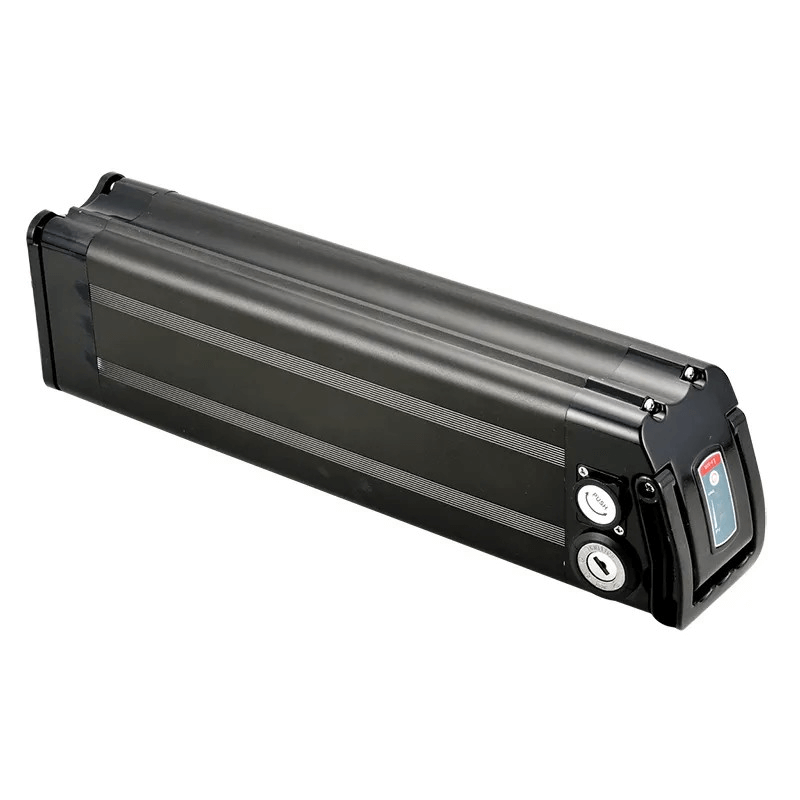

Rechargeable 48V 20Ah 1000W Silver Fish Lithium Battery Pack

2025-02-28 06:17

ข้อมูลจำเพาะ

สิ่งของพารามิเตอร์
แรงดันไฟฟ้าที่กำหนด48V
ความจุที่กำหนด20Ah(can be customized)
BMS20A (can be customized)
ปล่อยnormal current1 ค
Max continuous current2C (≤5min)
cut-off voltage35.7V
Discharge portbottom discharge, with 2pin plug
(4pin plug/top discharge is available, please leave remarks if need)
ชาร์จnormal charge current0.5C
โหมดชาร์จCC/CV with professional charger
cut-off voltage54.6±0.1V

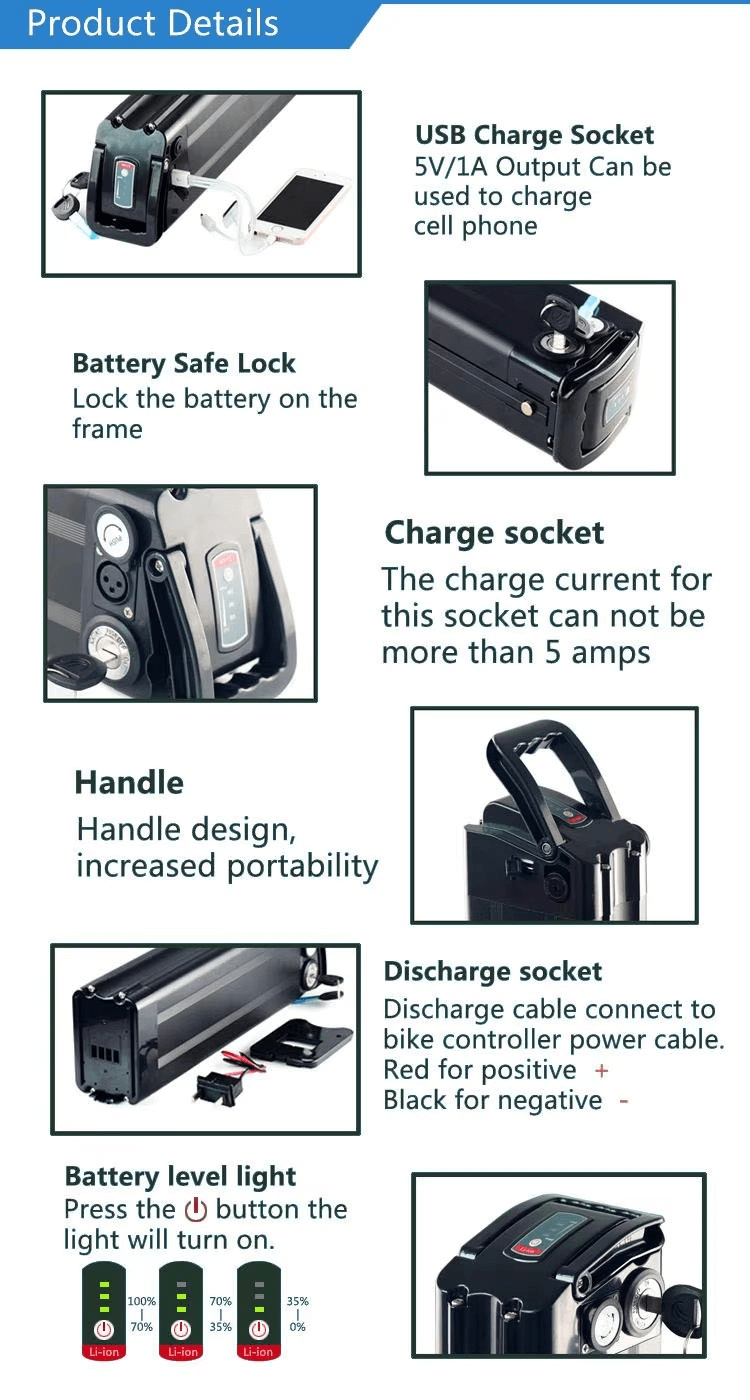

Charge portXLR (DC5521, Lotus is available, please leave remarks or contact us while the order been placed)
ความต้านทานภายใน≤80mΩ
Discharging Inner resistance
อุณหภูมิการชาร์จ0℃~+45℃When the environment temperature is higher than 45℃,please pay attention to ventilation and heat rejection.
ปล่อยอุณหภูมิ-20℃~+60℃
ช่วงความชื้นRH≤85%
ฟังก์ชั่นการป้องกันOver charge protection,Over discharge protection,Over current protection,Balanced function
วัสดุเปลือกAluminum alloy
น้ำหนัก6.5±0.1กก
ขนาด (L * W * H)495*110*75(mm)
วงจรชีวิตStandard charge at 0.2C(A), rest 0.5~1 h,discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 500 cycles.( capacity retention rate≥80%)

คุณสมบัติ

* Longer life compared to Lead-Acid battery
* Over-Charging safety protection
* 60% more energy
* Over-Discharging safety protection
* Up to 70% weight savings
* Over-Current safety protection
* Easy to install and remove

* Short Circuit safety protection
* Faster charging times
*High Temperature safety protection
*100% available capacity
*Built-in safety protection BMS
* No fire, No explosions
*Eco-friendly, no pollution

โรงงานของเรา

ทำไมถึงเลือกพวกเรา

15+ years experience
Our R&D team has focused on power solutions and batteries customization for already 15 years by provided battery packs for the world famous companies in the field.
Quality guarantee
All batteries are produced according to the strictest industry standards. we've cooperated with brand cells like Samsung, LG, Panasonic, etc for all battery packs.
Worldwide after-sales service
Wherever you are we try the best to response to your complaints at the first time. and we provide full 12 months warranty after ex-factory.

การบรรจุและการจัดส่ง

คำถามที่พบบ่อย

1,Q: What's the main product?

A: Power Wall Bank,Portable power supply,Lithium battery cell,charger,Golf cart batteries

2, Q: ขูดเลือดคืออะไร?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current then charge to 0.01C at CV mode. Observe changes in battery appearance.

3, Q: การปลดปล่อยคืออะไร?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C.Observe changes in battery appearance

4, ถาม: ฉันสามารถสั่งซื้อตัวอย่างได้หรือไม่?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require

5, Q: คุณมีขีด จำกัด MOQ หรือไม่?

ตอบ: ใช่เรามีขีด จำกัด MOQ สำหรับการผลิตจำนวนมาก แต่ขึ้นอยู่กับรุ่นของแบตเตอรี่ กรุณาติดต่อสอบถามรายละเอียด.

6, Q: แล้วระยะเวลารอคอยล่ะ?

A: Samples will takes 5-7 business days. Mass production will takes 25-30 days.It depends on quantity.

7, Q: เวลาในการจัดส่งและการจัดส่งเป็นอย่างไร?

A: Generally, battery will be shipped via Express,such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service. delivery time is 11-15 business days. Airline and sea shipping also available.

8, Q: แล้วบริการหลังการขายล่ะ?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions. Welcome to contact us for samples testing Orders.

บันทึก: เราเป็นผู้ผลิตแบตเตอรี่ ผลิตภัณฑ์ทั้งหมดไม่สนับสนุนการขายปลีก เราทำธุรกิจ B2B เท่านั้น โปรดติดต่อเราเพื่อขอราคาสินค้า!
